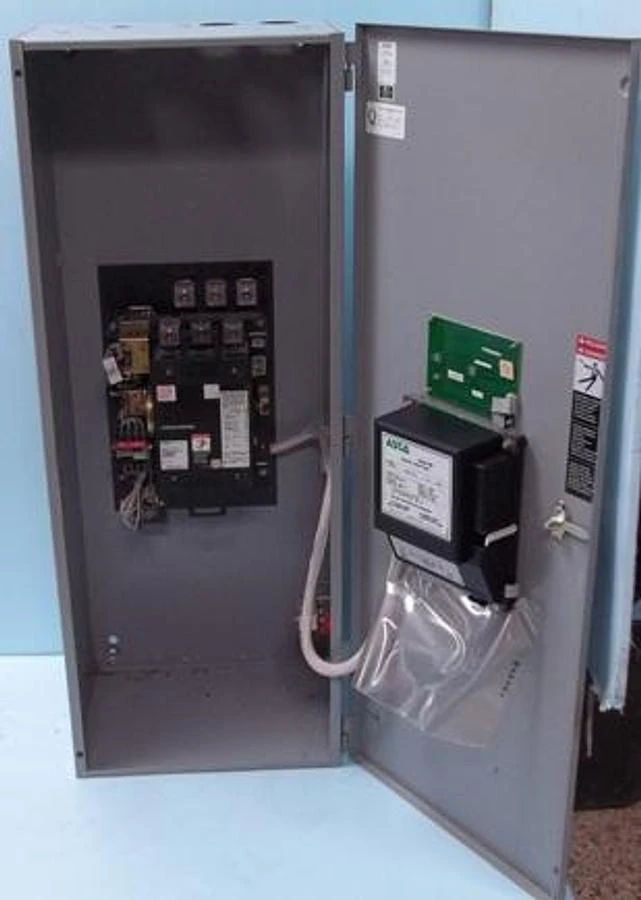

QTY. 1. ASCO AUTOMATIC SWITCH CO. TYPE 1 ENCLOSURE UL LISTED INDUSTRIAL CONTROL PANEL ENCLOSURE ISSUE NO. A-1182 60647300 87415430 REV. B E61997 UL LISTED AUTOMATIC TRANSFER SWITCH FOR EMERGENCY SYSTEMS 36VA ASCO QUALITY ASSURED BY TESTER TEST 124 INSPECTOR ACCEPT 38 184146 FORM QC 3599R1-3/2000 WITH 1. ASCO SERIES 300 AUTOMATIC TRANSFER SWITCH FOR USE ON EMERGENCY OR STANDBY SYSTEMS RATINGS: 260 AMPS 480Y/277 VOLTS 60HZ 3 PHASE SERVICE DATA: CAT. NO. A300326091XC BOM 725728 CONTROL PNL. 473670-006 WIRING DWG. 722055 S/O NO. 103140 S/N: 184146 TS COIL KIT 343501-025 RECTIFIER KIT 411785 CTRL. CONT. KIT 335606 FOR PROPER INSTALLATION & OPERATION REFER TO OPERATORS MANUAL 381333-067 609056-001 1 2 3 LOAD DISCONNECT CONTACTS OUTPUT CONTACTS 120VAC 5A 4 5 OPTIONAL ENGINE EXERCISER 6 7 MOMENTARY TEST SWITCH 8 9 MAINTAINED OPEN TO TRANSFER TO EMERGENCY 10 11 INHIBIT TRANSFER TO EMERGENCY 12 13 BYPASS TRANSFER TIME DELAY I NPUT CONTACTS 5VDC 5MA 14 15 16 FOR FACTORY USE 493192 BER51014029 629550-006 SUITABLE FOR CONTROL OF MOTORS ELECTRIC DISCHARGE AND TUNGSTEN LAMPS ELECTRIC HEATING EQUIPMENT WHERE THE SUM OF MOTOR FULL LOAD AMPS AND AMPS OF OTHER LOADS DOES NOT EXCEED THE SWITCH AMP RATING AND THE TUNGSTEN LOAD DOES NOT EXCEED 100% OF THE SWITCH RATING 240V MAX WHEN PROTECTED BY A CIRCUIT BREAKER WITHOUT AN ADJUSTABLE SHORT- TIME RESPONSE ONLY OR BY FUSES THIS TRANSFER SWITCH IS RATED FOR USE ON A CIRCUIT CAPABLE OF DELIVERING NOT MORE THAN THE RMS SYMM AMPS AT THE VOLTAGE SHOWN AMPS MAX AMPS X1000 VOLTS BREAKER/NFR/TYPE MAX ANY ANY ANY PER NEC ANY ANY ANY PER NEC 42 400 GE TFL,THLC2 225 SFL,SFLA,SFP 250 SGL 4, SGP4, TB4, THLC4,TLB4 400 SGLA,SGL6,SGP6,TB6 600 SKHA,SKL8,SKP6,TKL 800 42 400 I-T-E CFD6,FD6 250 FXD6,HFD6 250 CJD6,H4JD6,H4DCD6,HJD6 400 JD6,JXD6,SCJD6,SHJD6 400 SJD6 400 CLD6,H4JD6,H4XD6,HLD6 600 SCLD6,SHLD6 600 CMD6,HMD6,HND6,MD6,MXD6 800 SCMD6,SHMD6,SMD6,SND6 800 42 480 SQUARE D KC,KI 250 LC,LI 600 MH 800 42 480 WESTH HJD,JBC 250 HKB,KBC,LCL,TRI-PAC,LA 400 HLD 600 TRI-PAC MB 800 480 ABB S5 400 42 400 MERLIN GERIN CF250 250 CJ400 400 200 400 FUSE ANY CLASS J 600 USE 75 DEG. C. CO/AI WIRE FOR POWER CONNECTIONS USE 60 DEG. C. MIN CU WIRE FOR CONTROLS USE COPER OR ALUMINUM WIRE FOR POWER TERMINALS RECOMMENDED TIGHTENING TORQUE 600 IN. LBS. 483500-096 REV. C.
