QTY. 1. HEAT EXCHANGE AND TRANSFER INC
PLATE HEATER

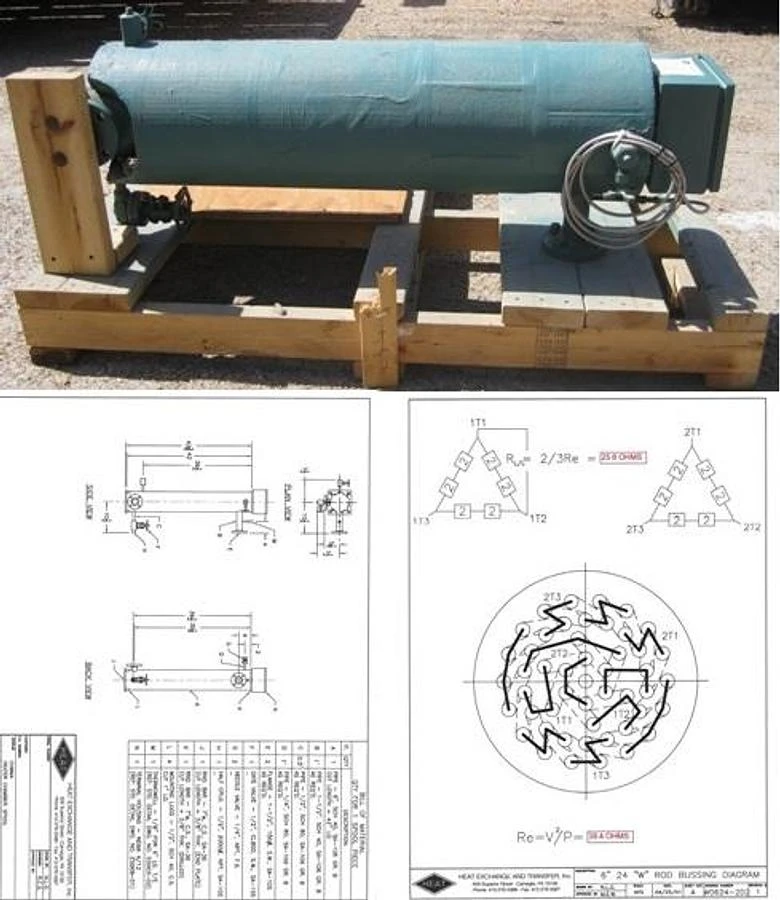

MEDIUM: MOBILTHERM 603. WITH 1-1/2" FLANGED 150 SWRF BOTTOM OUTLET AND 1-1/2" FLANGED 150 SWRF SIDE INLET. WITH TOP AND BOTTOM TAP VALVES. THIS IS A PLATE HEATER RATED FOR 36 KW ON 480 VOLT 3 PHASE SEE PHOTOS OF THE DRAWINGS AND BUSSING FOR THIS HEATER. THIS IS AN ELECTRIC HEATER. THIS HAS 24 U-BEND ELEMENTS WELDED TO A PLATED
AND THEN BUSSED IN THAT CONFIGURATION. THE SHEATH MATERIAL ON THESE WOULD BE 304 SS. YOU CAN REQUEST A BROCHURE FOR FLANGED HEATERS SO YOU CAN SEE WHAT THEY WOULD LOOK LIKE. THIS WOULD BE THE SAME THING
JUST WELDED TOGETHER INSTEAD OF A FLANGED CONNECTION. OUTSIDE STORAGE STARTING 3/14/2025.
Specifications
| Manufacturer | Heat Exchange and Transfer |
| Model | PH0624-36-483 |
| Condition | Used |
| Insulated plate heater serial no | 16-11085-1A |
| Kw | 36 |
| Volts | 480 |
| Phase | 3 |
| Hertz | 60 |
| Amps | 44 |
| Elec class | NEMA 4 |
| Max temp | 450 DEG F |
| Max press | 100 PSIG |
