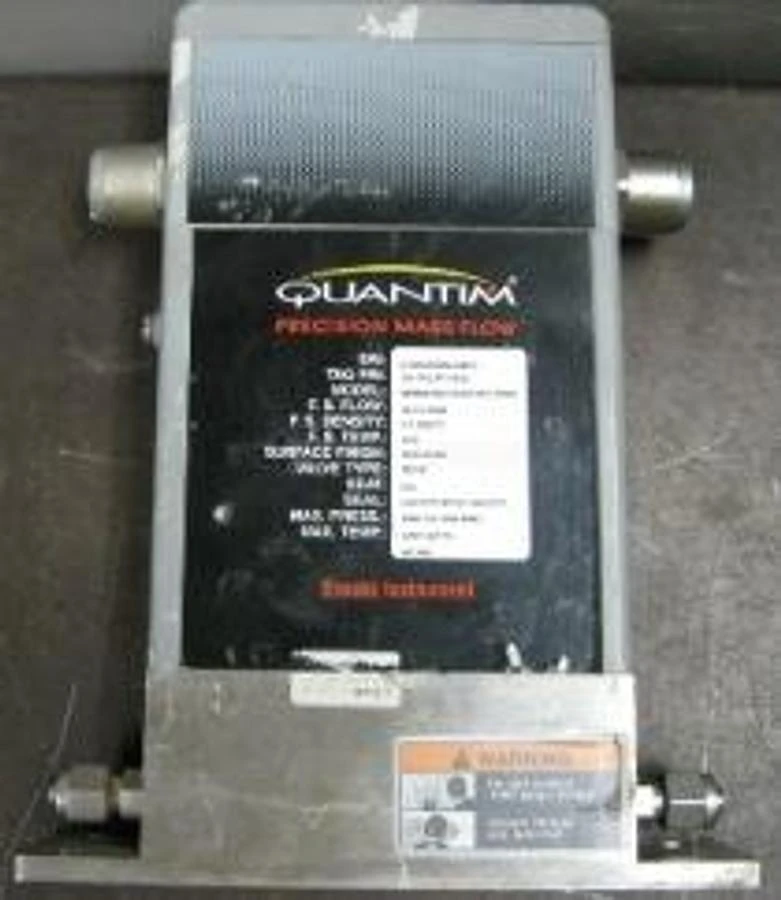

QTY. 1. BROOKS INSTRUMENT QUANTIM PRECISION MASS FLOW
TAG PART NO: SS TAG:FT-1242
CLASS 2 POWER SUPPY 13 TO 27 VDC
150 MA
CI I DIV2 GRPS A,B,C,D; CI II
DIV 2
GPS F & G; SUITABLE FOR CI III; T4
CLASS I
ZONE 2
AEX NA II T4
EX NA II T4
KEMA 05ATEX1068 X
II 3 G EE X NA II T4
II 3 D T 135C
Specifications
| Manufacturer | Brooks |
| Model | QMBM4L1A2D1A2A1CH4D1A1AA |
| Condition | Used |
| Serial Number | 0109020384724001 |
| F.s. flow | 10.0 KG/HR |
| F.s. density | 1.5 GM/CC |
| F.s. temp | 25 DEG C |
| Surface finish | STD 32 RA |
| Valve type | NONE |
| Seat | N/A |
| Seal | KAL6375 NONE KAL6375 |
| Max press | 1500 PSI (100 BAR) |
| Max temp | 149 DEG F (65 DEG C) |
| Enclosure | TYPE 4X/IP65 |
| Tambient | 0 DEG C TO 65 DEG C |
| Oem cust p/n | FT-1242. |
