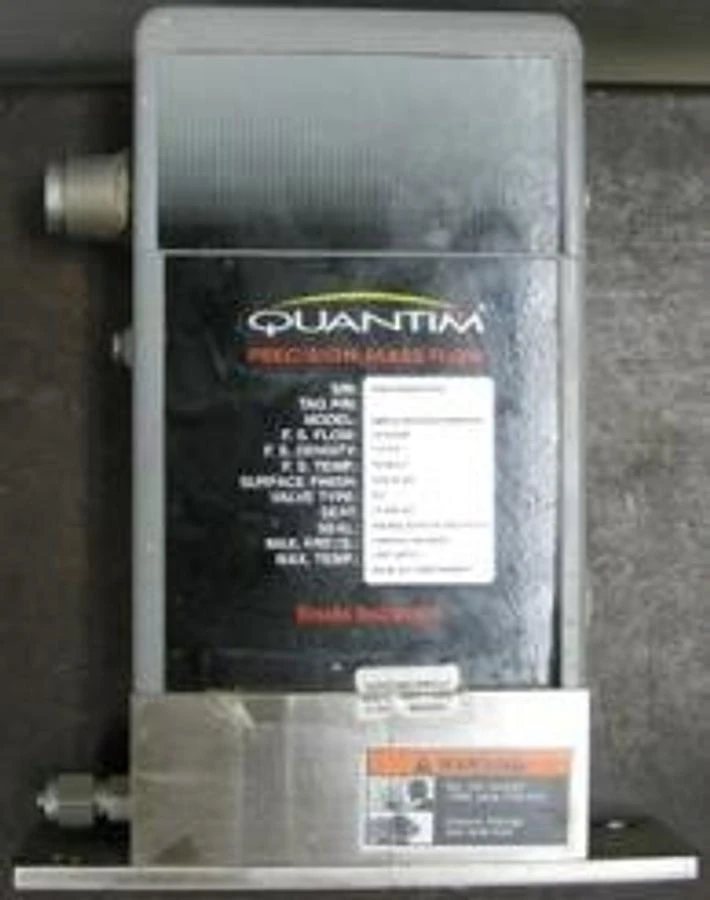

QTY. 1. BROOKS INSTRUMENT QUANTIM PRECISION MASS FLOW
CLASS 2 POWER SUPPLY 13 TO 27 VDC
400 MA
CI I DIV2 GRPS A,B,C,D; CI II
DIV 2,AEX NA II T4
EX NA II T4
KEMA 05ATEX1068X
II 3 G EEX NA II T4
II 3 D T 135C.
Specifications
| Manufacturer | Brooks |
| Model | QMBC2L1B2D1A2A1CH6C7A1BA |
| Condition | Used |
| Serial Number | 0106100322913003 |
| F.s. flow | 215 GR/HR |
| F.s. density | 1.0GM/CC |
| F.s. temp | 70 DEG F |
| Surface finish | STD 32 RA |
| Valve type | N.C. |
| Seat | 17-7PH SS |
| Seal | KALREZKALREZKALREZ |
| Max press | 1500 PSI (100 BAR) |
| Max temp | 149 DEG F (65 DEG C) |
| Enclosure | TYPE 4X/IP65 |
| Ambient | 0 DEG C TO 65 DEG C |
