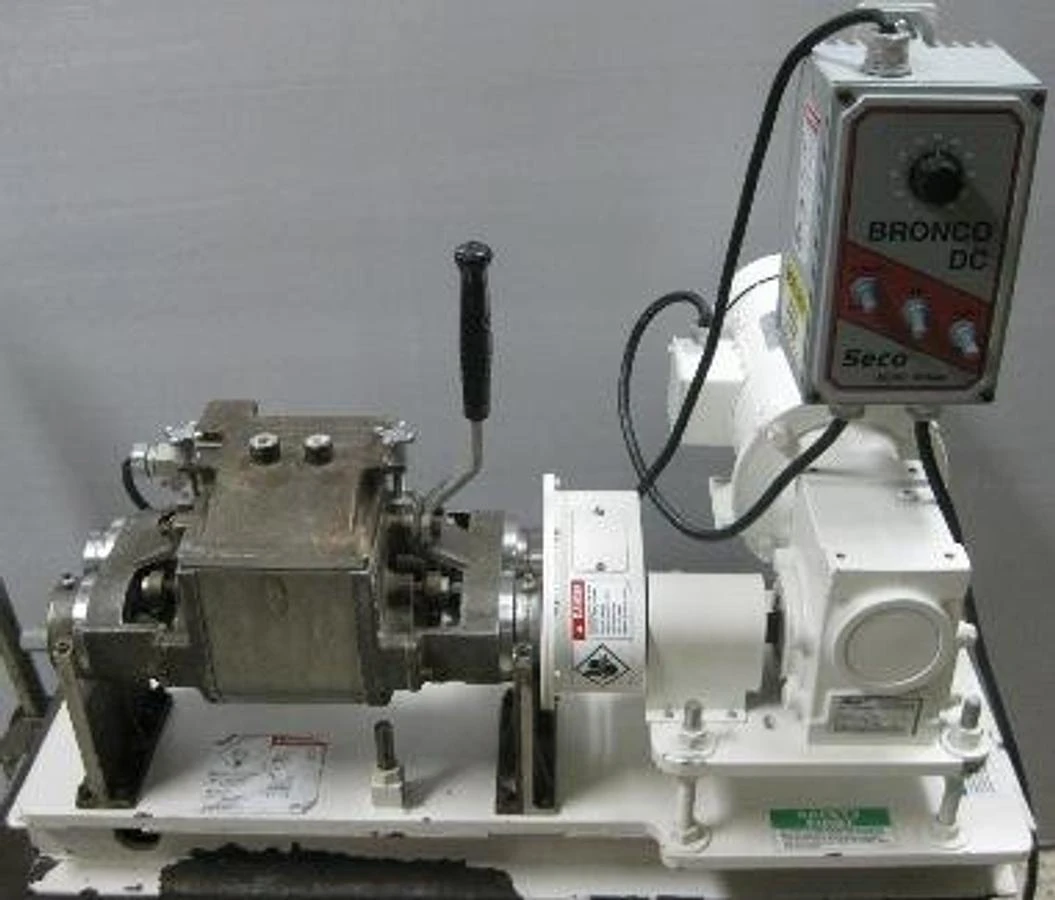

QTY. 1. AARON PROCESS EQUIPMENT BASE MOUNTED LABORATORY SIGMA DOUBLE ARM MIXER
CAPACITY: 1 QUART WORKING CAPACITY: .25 GALLON. SERIAL NO: 11001-4003-41104LNG
WITH BRONCO II ADJUSTABLE SPEED DRIVE CONTROLLER
0-180 VDC @ 10 AMPS
100/200 VDC @ 1 AMP
AND TIGEAR 2
RATIO: 25:1
MECHANICAL RATING @ 1750 RPM AND 1.0 S.P.
STAINLESS BLADES. AARON LABORATORY SIGMA BLADE MIXER
1 QUART (.25 GALLON) WORKING CAPACITY
STAINLESS STEEL. 1-1/2 QUART TOTAL CAPACITY. JACKETED CHAMBER APPROXIMATE 5.75" X 4"
VACUUM RATE. STAINLESS STEEL CONSTRUCTION WITH STAINLESS STEEL BLADES. SIGMA BLADES DRIVEN BY 3/4HP
90 VOLT
1750 RPM DC GEAR MOTOR
VACUUM COVER. THIS USED AARON LABORATORY SIGMA BLADE MIXER IS A PRECISION MIXING UNIT DESIGNED FOR SMALL-SCALE PROCESSING
R&D
AND PILOT PRODUCTION APPLICATIONS IN PHARMACEUTICAL
FOOD
CHEMICAL
AND COSMETIC INDUSTRIES. CONSTRUCTED WITH STAINLESS STEEL
THIS MIXER FEATURES A JACKETED CHAMBER (5.75" X 4") FOR TEMPERATURE-CONTROLLED MIXING. IT INCLUDES STAINLESS STEEL SIGMA BLADES
Specifications
| Manufacturer | Sigma |
| Model | C4D17FK3F |
| Condition | Used |
| Serial Number | 14953 |
| Ac in | 115 VAC @ 15 AMPS 230 VAC @ 15 AMPS |
| Arm output | 0-90 VDC @ 10 AMPS |
| Fld output | 50/100 VDC @ 1 AMP |
| Power output | 1 HP |
| Encl type | 4/12 |
| Gear reducer part no | 17Q25R56 |
| Lot | L |
| Max torque (lb-in) out | 609 |
| Max hp in | 0.88 |
| Date code | B08G |
| Sub | DBTDP |
| Driven by | LEESON DIRECT CURRENT PERMANENT MAGNET MOTOR |
| Cat no | 108018.00 |
| Rpm | 1750 |
| Volts | 90 |
| Amps | 7.6 |
| Frame | XS56C |
| Torque | 27 |
| Encl | TEFO |
| Hp | ¾ |
| Serf alt | 1.0 |
| Max amb | 40 |
| Insul class | F3 |
| F.f. | 1.38 |
| 25 | 1 RATIO. HAS BRONCO II ADJUSTABLE SPEED CONTROLLER. HAND TILT |
| 1750 rpm dc gear motor with a 25 | 1 RATIO |
